Fully Automatic High Speed Double Coating Head UV Varnishing Machine (Multifunctional Type) Anti-Scratch Oil, Soft Touch Oil, Matte Varnishing Oil, De-Plastination Oil, Dyeing Oil

Characteristics

Fully automatic fast model with a single-color adjustment system, with a maximum speed of 90 meters per minute, enabling a signiticant increase in production capacityThe B model is equipped with an air knife system in the UV coating system so that the machine can easily UV polish thin paper.(Another air knife system can be purchased in thebase oil coating system)* Dual powder removing system can ensure the cleanness of paper surface before varnishing , to improve the quality of varnishing.* The UV lamp of UV curina & drying system has two modesfuly-ichtin and sem-ichtin states which can extend the service ife of UV lamp. the UV amp holder can be moved upand down by air pressure system at emergency to ensure the safety and to reduce the loss.


Product Detail

Product Tags

Configuration

Configuration01

Paper Feeder

Adopt servo shaftless drive, High-speedfeeder heads with four-suction, four-feedstructure, available for both thin and thickpaper.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_05

Water-based Powderremoval System

Use Water circulation to remove dust onpaper surface to ensure the varnishingquality.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_07

Base Oil Coating System

It is available for both water-based glueand oily glue, blister varnishing. also thewater-based calendering.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_09

UV Surface Coating UV

UV varnishing system adopts reversal. Anilox roller to control the oil thicknessto ensure smooth coating, insteadsqueezing the rubber roller.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_18

Miltu-functional Coating System

Available for Anti-scratch matte finish, softtouch finish, Dyeing, De-plastination, Primer on metalized paper.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_20

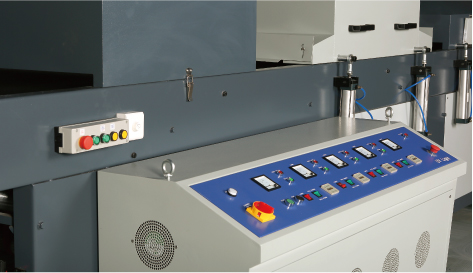

Human Machine Interface

Humanized design, rotatable operation.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_22

IR/UV Drying System

Two options: Half-power heating or ful-power heating.

Fully-Automatic-High-Speed-Double-Coating-Head-UV-Varnishing-Machine1_24

Paper Delivery System

Pneumatic jogging system, wastedischarge system, paper can be neatlycollected even under high speedproduction.

Specification

Model XJT-2 XJT-2 XJT-2 XJT-2 XJT-2
Max. Sheet Size(W*L)mm 1200*1200mm 1200*1650mm 1450*1450mm 1450*1650mm 1650*2250mm
Min. Sheet Size (W*L)mm 350*350mm 350*350mm 350*350mm 350*350mm 350*350mm
Paper Size(g/m2) 230-600g(with air knife above 175g) 230-600g(with air knife above 175g) 230-600g(with air knife above 175g) 230-600g(with air knife above 175g) 230-600g(with air knife above 175g)
Electrical Heater(KW) 36/48 36/50 40/55 40/58 48/63
3 pieces of UV lamp(KW) 30 30 36 40 48
Power requirement(KW) 80/90 80/90 80/90 90/98 102/115
Machine Speed(m/min) 0-90 0-90 0-90 0-90 0-90
Machine Dimension(L*W*H)mm 17800*3400*2300mm 19500*3400*2300mm 19750*3900*2300mm 20500*4190*2300mm 22300*4590*2300mm
Machine Weight(KG) 9500kg 9800kg 10200kg 11000kg 12000kg
